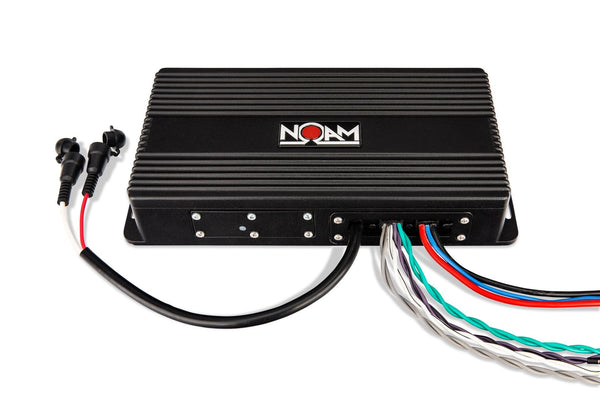

The All New HS4 Marine amplifier
HS4 = the 'H' stands for Holy and we'll leave you guessing what the 'S' stands for. We gave it that name because that was our immediate reaction when we first heard it. We tooled this Die cast 4.5lb monster of an amplifier to withstand the rough and tough environment it is meant to work in! The HS4 is a 4-channel full range amplifier with fully variable high pass and low pass crossovers. These enable it to drive our NOAM N5 speakers and other full range speakers or subwoofers.
Specs:
-
Number of Channels: 4
-
Frequency Response: 40Hz~20KHz
- Power output at 4Ω - 70W x 4
- Power output at 2Ω - 120W x 4
- Power output at 4Ω Bridged - 250W x 2
-
Input Sensitivity: 550mV
-
Low Pass Filter: 40Hz~400Hz with 12dB/Octave slope(s)
-
Signal-to-Noise Ratio: >90dB (A weighted at 1KHz)
- Size: Length: 10”, width: 5” and Height: 2”
** The HS4 amplifier does not fit the NBTA4-R controller of the NUTV4 series
